Features

Specifications

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops

Video Outgoing-inspection: Not Available

Machinery Test Report: Not Available

Warranty Of Core Components: 1 Year

Core Components: Pump

Condition: New

Efficiency: 99%

Construction: Cartridge Filter

Porosity: 3

Dimension(L*W*H): 72*35*500

Weight: 0.5 KG

Warranty: 1 Year

After-sales Service Provided: No After-sales Service

Product Name: Vacuum Pump Exhaust Filter

Application: Vacuum Pump

Color: White

Type: Vacuum Pump Oil Mist Separator

Working Temperature: 80 --120

Filtration Efficiency: 99.99% Filtration Area

Usage: Widely Used Dust Filter

Feature: High Permeability

Basic Infomation

Place of Origin: Hebei, China

Brand Name: lvshen

Payment & Shipping Terms

Packaging Details: In plastic bags, outside the carton or as required

Supply Ability: 1000 Piece/Pieces per Month

Gallery

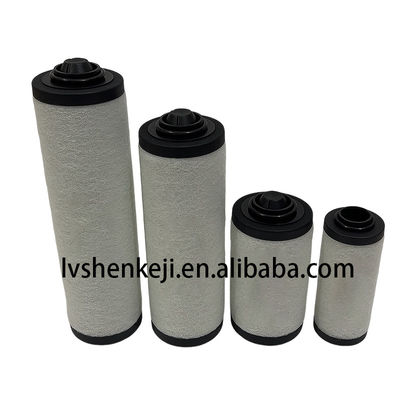

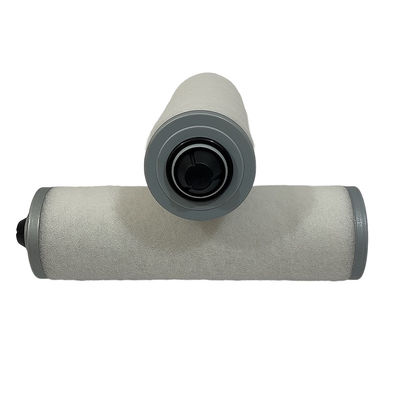

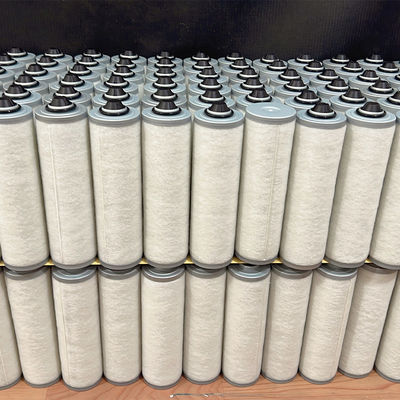

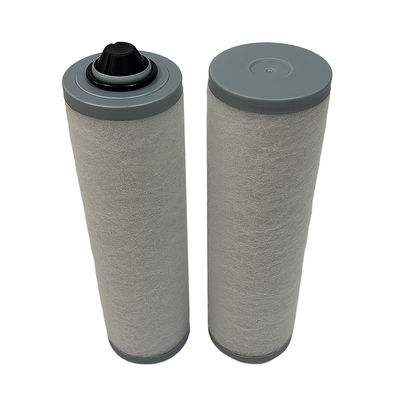

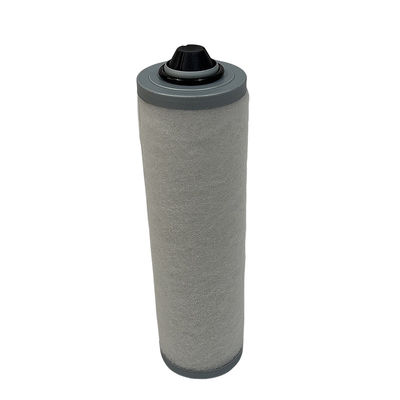

Oem High Quality Vacuum Pump Oil Mist Separator Filter Element 0532000509 for XD-0063/0100

Product Description

Vacuum pump exhaust filters are optimally tuned to separate oil mist from exhaust air providing a cleaner working environment.They offer low noise levels and oil-free exhaust air. Regular filter changes improves the performance, reliability, and working life of your vacuum equipment. 1.General operating pressure of oil separator filter:0.7 Mpa 2.Initial differential pressure of oil separator filter:0.15 bar 3.Oil content of oil separator: 3ppm 4.Oil mist particles of oil separator:≤0.1μm. 5.Material of oil separator element: ultra-fine glass fiber from USA HV and Lydall 6.Fine process of rolling welding, spot welding and the latest two-component glue. 7.Working pressure of oil separator: ≤120°C 8.Service life of oil separator: 4000h Model list

Model No.	Type	Oil Filter
0532140156/0532000512	XD-0040/0025	0531000002
0532140157/0532000509	XD-0063/0100	0531000002
0532140159/0532000508	XD-0160/0202/0250/0302	0531000001
0532140160/0532000507	XD-0040/0630	0531000005
