Features

Specifications

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops

Video Outgoing-inspection: Not Available

Machinery Test Report: Not Available

Warranty Of Core Components: 1 Year

Core Components: Pump

Condition: New

Efficiency: 99%

Construction: Cartridge Filter

Porosity: 3

Dimension(L*W*H): 72*35*500

Weight: 0.5 KG

Warranty: 1 Year

After-sales Service Provided: No After-sales Service

Product Name: Vacuum Pump Exhaust Filter

Application: Vacuum Pump

Color: White

Type: Vacuum Pump Oil Mist Separator

Working Temperature: 80 --120

Filtration Efficiency: 99.99% Filtration Area

Usage: Widely Used Dust Filter

Feature: High Permeability

Highlight:

0532140159 Vacuum Pump Filter

0532140159

0532000508 Oil Mist Separator

Basic Infomation

Place of Origin: Hebei, China

Brand Name: lvshen

Payment & Shipping Terms

Packaging Details: In plastic bags, outside the carton or as required

Supply Ability: 1000 Piece/Pieces per Month

Gallery

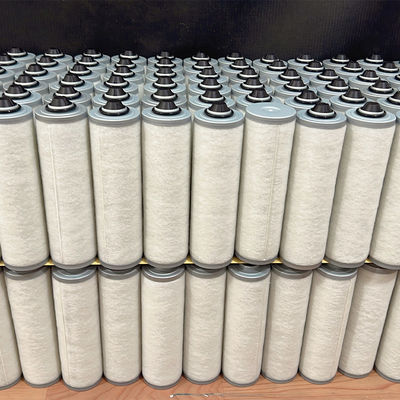

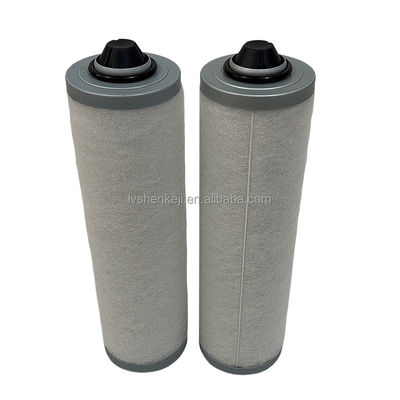

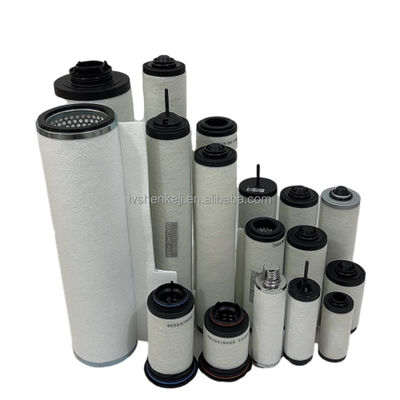

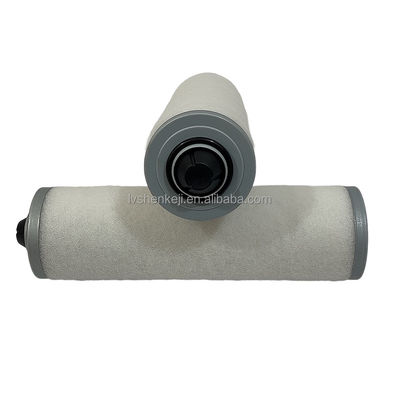

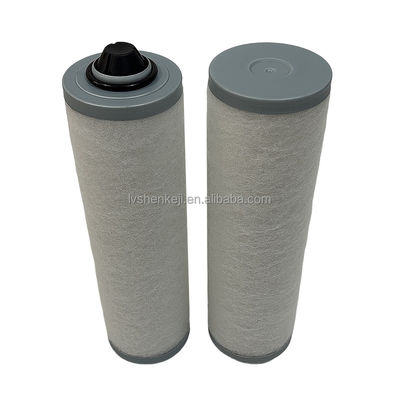

0532140159 Vacuum Pump Filter High Efficiency Oil Mist Separator 0532000508

Product Description

0532000508 High Efficiency Vacuum Pump Oil Mist Separator Filter 0532140159

Vacuum pump exhaust filters are optimally tuned to separate oil mist from exhaust air providing a cleaner working environment.They offer low noise levels and oil-free exhaust air. Regular filter changes improves the performance, reliability, and working life of your vacuum equipment. 1.General operating pressure of oil separator filter:0.7 Mpa 2.Initial differential pressure of oil separator filter:0.15 bar 3.Oil content of oil separator: 3ppm 4.Oil mist particles of oil separator:≤0.1μm. 5.Material of oil separator element: ultra-fine glass fiber from USA HV and Lydall 6.Fine process of rolling welding, spot welding and the latest two-component glue. 7.Working pressure of oil separator: ≤120°C 8.Service life of oil separator: 4000h Model list

Model No.	Type	Oil Filter
0532140156/0532000512	XD-0040/0025	0531000002
0532140157/0532000509	XD-0063/0100	0531000002
0532140159/0532000508	XD-0160/0202/0250/0302	0531000001
0532140160/0532000507	XD-0040/0630	0531000005
